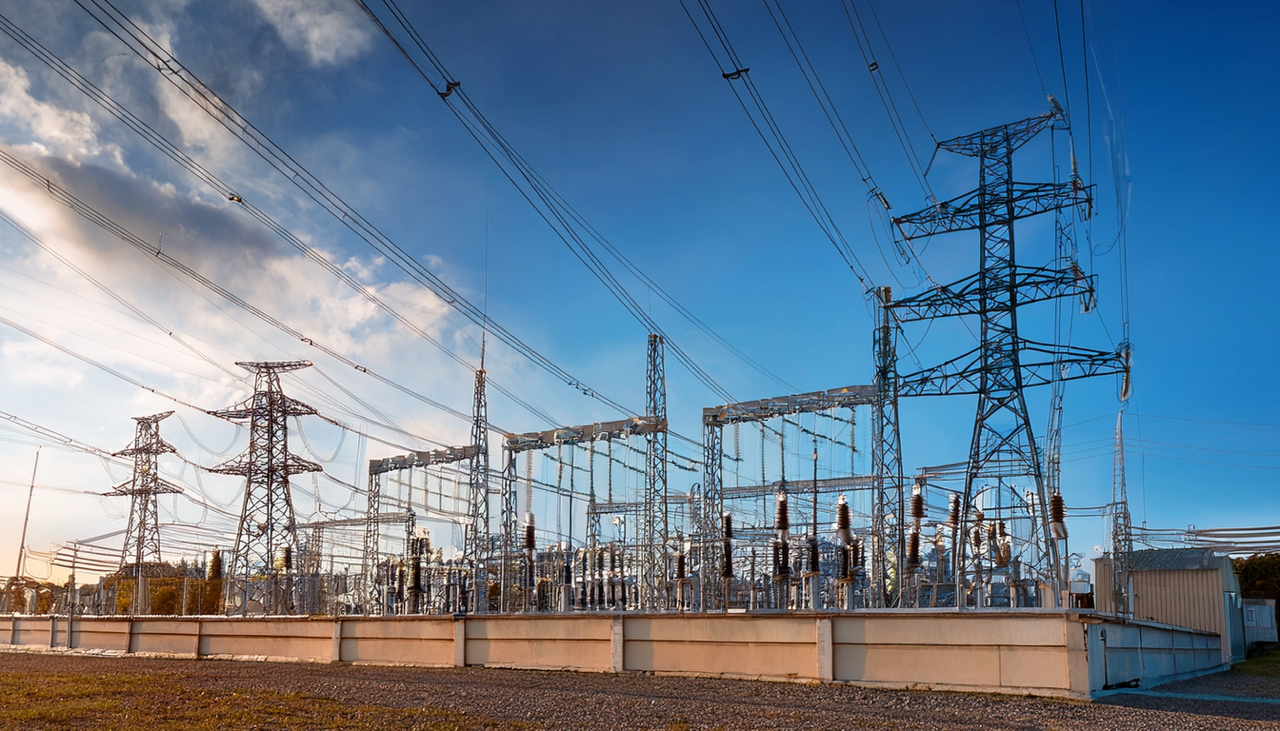

A high-voltage substation is sometimes approached as a compliance exercise: apply the applicable standards, select the equipment, complete the drawings and obtain approval. At 132kV, 220kV and 400kV, that approach misses what ultimately determines whether the asset performs reliably over a 30-40 year service life.

The real engineering challenge is managing a chain of interdependent decisions. Network fault levels influence circuit-breaker interrupting capability and equipment withstand requirements. Protection requirements influence CT performance and relay application. Protection philosophy influences fault-clearing time. Switching and lightning overvoltages influence insulation coordination. Physical layout affects secondary cable lengths, maintainability and constructability. And all of these decisions ultimately affect equipment selection, commissioning, operation and lifecycle cost.

The quality of a substation design therefore depends not only on whether individual calculations are correct, but on whether the assumptions, calculations, equipment specifications and physical interfaces remain technically consistent with one another.

01.Fault Levels Define the Electrical Design Envelope

A common sequencing problem is to develop the single-line diagram and equipment schedule around assumed fault levels before the short-circuit study has been sufficiently established.

Prospective short-circuit current at each busbar is a fundamental input to circuit-breaker interrupting capability, busbar and conductor short-time withstand, equipment peak withstand and protection application. For protection CTs, the relevant fault conditions also need to be established when assessing CT performance. A CT selected against an assumed fault level that is subsequently revised upward during detailed engineering may no longer provide the required performance for its intended protection function.

The study should also consider the appropriate network planning horizon rather than focusing only on today's operating configuration. Future generation, transmission reinforcement, interconnections and increasing penetration of inverter-based resources can change the electrical characteristics of the network over the life of the substation.

This is increasingly relevant across the GCC. Utilities and transmission operators including SEC, DEWA and ADDC/TRANSCO continue to develop and reinforce networks as electricity demand, renewable generation, storage and new transmission infrastructure expand. At the regional level, the GCC Interconnection Authority operates a 400kV interconnection network linking the electrical systems of the GCC states, making the reliability of high-voltage substations and their protection and control systems increasingly important to interconnected network performance.

For an HV substation, the short-circuit study therefore needs to establish an appropriate design envelope, including relevant present and future operating conditions, rather than simply documenting the fault current at the date of design.

02.CT Performance Can Determine Protection Reliability

Current-transformer selection is sometimes reduced to choosing a ratio that matches the expected load current. For protection applications, particularly differential and stability-sensitive schemes, ratio is only one part of the engineering decision.

Protection CT performance needs to be assessed against the relevant fault conditions, secondary resistance, connected burden, lead resistance, remanence and the requirements of the specific protection scheme. For PX-type applications, the required knee-point voltage is typically assessed from the applicable protection philosophy and CT requirements, with external burden and maximum credible through-fault conditions included in the calculation.

This is where physical design becomes part of the electrical calculation. Secondary lead resistance depends on conductor characteristics and cable length. On a large transmission substation, the distance between CT marshalling points and protection panels can become a significant component of total secondary burden.

That means CT specification should not be finalised independently of:

• Control-building location
• Marshalling architecture
• Protection panel arrangement
• Cable-routing philosophy
• Secondary cable lengths
• Protection scheme requirements

A calculation based on an assumed cable length may be mathematically correct but become inadequate when the actual layout increases the secondary burden.

03.Protection Philosophy Defines Fault-Clearing Performance

Protection coordination should not be treated as a collection of independent relay settings. For time-graded protection schemes, the grading margin between successive protection stages needs to account for the actual operating characteristics of the relays, circuit breakers, CT performance, communication delays where applicable, and the tolerances and uncertainties within the protection chain.

The often-used 0.3-0.4 second grading interval should not be treated as a universal requirement. The appropriate margin depends on the protection technology, utility philosophy, relay and breaker operating times, CT performance and the network configuration. This matters because excessive grading margins can increase fault-clearing time, with consequences for equipment thermal stress, system stability and the operating envelope of connected generation.

The protection philosophy itself can also change the required clearing performance. Unit protection schemes such as line or busbar differential protection can provide very fast fault clearance, but they introduce requirements for communications, channel availability, scheme security, dependability and appropriate backup protection.

As renewable generation and BESS increase across transmission networks, protection application also becomes more complex because inverter-based resources do not necessarily contribute fault current in the same manner as conventional synchronous machines.

04.Insulation Coordination Must Reflect the Actual Overvoltage Environment

Insulation coordination provides the link between the electrical overvoltage environment and the insulation capability of substation equipment. IEC 60071-2:2023 provides application guidance for selecting insulation levels for three-phase AC systems above 1kV and addresses the determination of rated withstand voltages for insulation-coordination purposes. The current edition also includes guidance related to detailed simulation and additional considerations for cables, GIL/GIB and lightning performance.

However, selecting an insulation level simply from a voltage-class table can overlook the actual overvoltage environment of the installation. The assessment should consider:

• Temporary overvoltages
• Switching overvoltages
• Lightning overvoltages
• Surge-arrester protective characteristics
• Network configuration
• Incoming line exposure
• Substation geometry
• Earthing characteristics
• Equipment characteristics
• Relevant site conditions

At higher transmission voltages, switching overvoltages can become particularly important for events such as line energisation, fault clearing and switching of reactive equipment. Lightning performance is also influenced by the site and incoming transmission lines. The resulting insulation-coordination assessment establishes the relationship between expected voltage stresses, required withstand capability and surge-arrester protection, ultimately influencing equipment selection and physical clearances.

For GCC installations, environmental conditions add another dimension. Coastal salt contamination, humidity, dust and pollution can influence external insulation performance, creepage requirements and maintenance strategy. These conditions can vary significantly between a coastal installation in the UAE and an inland substation in Saudi Arabia or Oman.

05.GIS or AIS: Optimising Reliability, Footprint and Lifecycle Value

GIS and AIS should not be selected simply because one technology is associated with a particular voltage level or because it is the utility's conventional preference. The decision should consider:

• Land availability
• Environmental exposure
• Required footprint
• Installation complexity
• Equipment availability
• Specialist skills
• Maintainability
• Outage philosophy
• Future extension requirements
• Lifecycle cost
• Replacement strategy

GIS can provide a substantial footprint advantage and a sealed primary system that may be particularly attractive where land is constrained or environmental exposure is severe. AIS generally provides greater physical accessibility and straightforward visual inspection and maintenance, while avoiding some of the specialist requirements associated with gas-insulated equipment.

At 132kV, AIS can remain highly attractive where land is available and environmental conditions are manageable. At 220kV and 400kV, GIS can become increasingly attractive where footprint, contamination or site constraints are significant. However, voltage level alone should never determine the technology choice.

The appropriate decision should emerge from a site-specific technical and lifecycle comparison that considers not only initial CAPEX but also availability, maintenance, outage requirements, specialist support, expansion and replacement over the asset's operating life.

06.Protection Boundaries Must Be Engineered Across the Network

A substation's protection and control philosophy cannot be finalised in isolation from the networks connected to it. Busbar protection zones, breaker-failure logic, line protection interfaces, transformer protection and protection grading all depend on the characteristics of the networks on either side of the substation.

This becomes increasingly important as transmission systems integrate large amounts of solar PV and BESS. Inverter-based resources can have different fault-current characteristics and control responses from conventional synchronous generators. These characteristics need to be reflected in relevant system studies and protection assessments.

Protection boundaries also need to be explicitly defined. The interface between:

• Substation protection
• Transmission-line protection
• Adjacent substations
• Renewable generation
• BESS
• Communication systems
• Control and SCADA systems

should be established through clear protection philosophies, interface signals, responsibility matrices and operating requirements. Ambiguity at these boundaries can lead to late engineering clarification, protection-setting changes, interface disputes and commissioning problems.

07.Physical Design Determines Constructability and Long-Term Maintainability

A substation can satisfy its electrical calculations and still create significant project and operational risk if the physical design is not tested against construction and maintenance requirements. The engineering needs to consider:

• Equipment delivery and access routes
• Transformer transportation and replacement
• Circuit-breaker lifting and maintenance
• Cable-trench routing and segregation
• Control and protection panel accessibility
• Earthing and civil interfaces
• Commissioning sequence
• Temporary construction arrangements
• Safe isolation and maintenance access
• Future extension provisions
• Replacement of major equipment
• Fire and safety requirements
• Operational clearances

A transformer replacement strategy that was never considered during layout development can become a major civil and operational constraint decades after commissioning. Similarly, inadequate cable segregation or inaccessible protection panels can create unnecessary commissioning and maintenance difficulties even though the electrical design itself is technically compliant.

From Design Intent to Commissioning Performance

A substation design ultimately has to survive more than a design review. The utility asks whether the design complies with the applicable grid code, standards and protection philosophy. The EPC asks whether it can be constructed safely, efficiently and within schedule. The OEM asks whether equipment is being operated within its specified design limits. The commissioning team asks whether the protection system operates correctly using the actual installed CT ratios, CT characteristics, cable impedances, circuit-breaker characteristics and final relay settings. The operator asks whether the completed substation can be safely maintained and reliably operated for decades.

This is why commissioning should not be treated as simply the final stage of engineering. The commissioning philosophy should influence the design itself. Protection test facilities, isolation arrangements, test access, secondary injection points, communication interfaces and as-built documentation all need to be considered before construction is complete.

The Engineering Chain Behind a Reliable Substation

The difference between a substation that passes a compliance checklist and one that performs reliably for decades is rarely a single calculation. It is the discipline of maintaining the engineering chain from network studies to equipment specification, from protection philosophy to physical design, and from detailed engineering to commissioning and operation.

And every one of these decisions ultimately has to work within the site's commercial, environmental, operational and regulatory constraints.

HV Substation Engineering in the GCC: Where Network Requirements Meet Site Reality

The GCC is developing and reinforcing transmission infrastructure while integrating growing volumes of renewable generation, BESS and new electrical loads. The regional context makes technically robust substation engineering increasingly important.

In the UAE, DEWA, EWEC/TRANSCO and SEWA operate within rapidly developing transmission and distribution environments with increasing renewable and infrastructure requirements. In Saudi Arabia, SEC and National Grid SA operate within one of the region's largest and rapidly developing power systems. In Oman, OETC continues to develop and operate the country's high-voltage transmission network, while Kahramaa, MEW and EWA address transmission and grid-integration requirements in Qatar, Kuwait and Bahrain respectively.

At the regional level, the GCC Interconnection Authority operates a 400kV network linking the GCC electrical systems. GCCIA is also advancing further 400kV network expansion and interconnection projects, reinforcing the importance of high-voltage substations, protection, control and transmission interfaces across the region.

Despite differences in utility standards, grid codes and procurement requirements, the underlying engineering questions remain closely connected:

• What are the present and future fault levels?
• What protection philosophy is appropriate?
• How will CTs perform under the relevant fault conditions?
• What insulation coordination is required?
• Should the substation use GIS or AIS?
• How will renewable generation and BESS affect protection and system studies?
• How will the substation be constructed, commissioned and maintained?
• What provisions are required for future expansion?

These questions should be addressed as an integrated engineering process rather than as independent design packages.
